A MantrixFlow pipeline is the operational definition of how data should move from one source connection into one or more destinations.

​
The current lifecycle

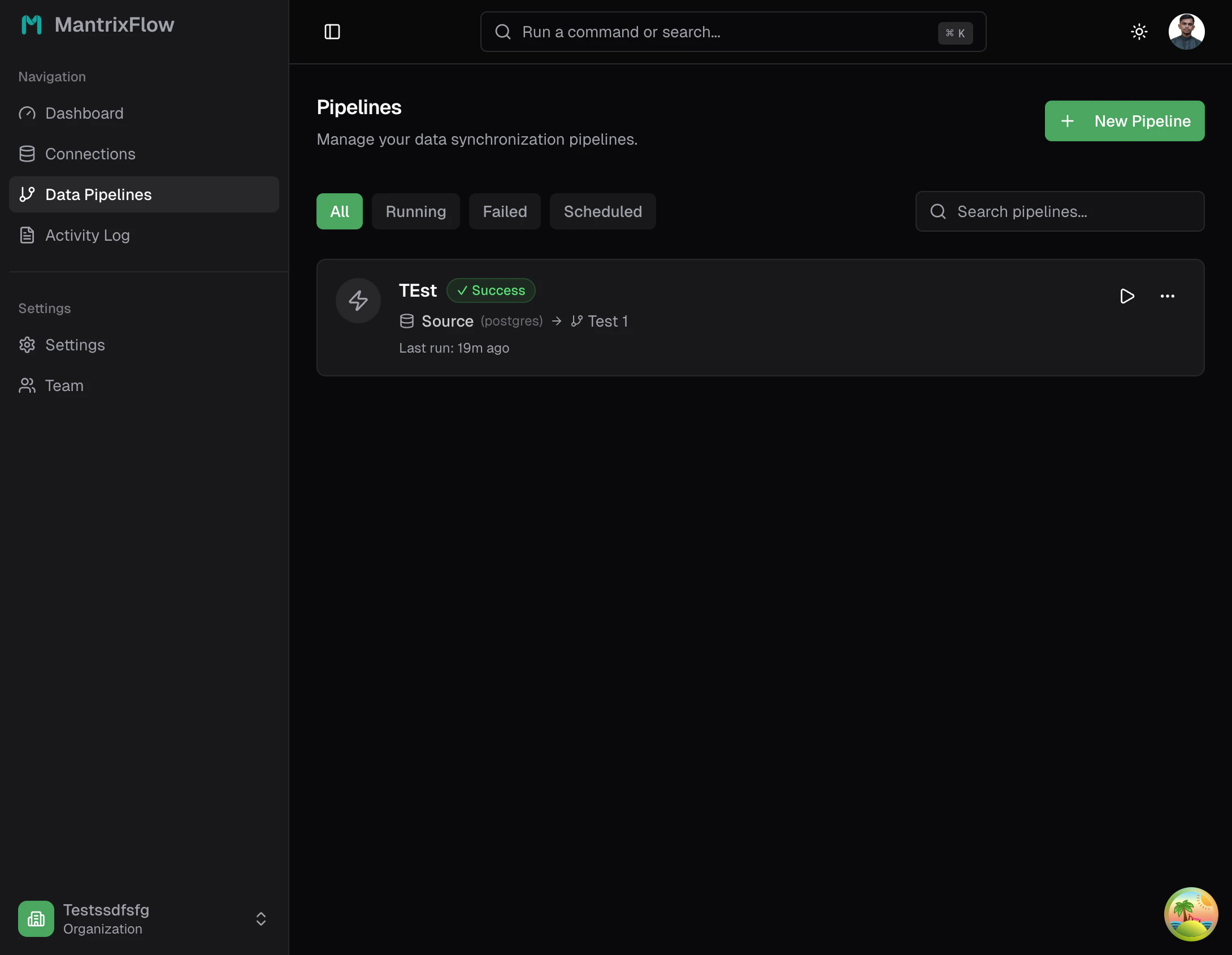

  1. Create a pipeline shell from Data Pipelines.
  2. Open the builder canvas (Source and Destination nodes appear automatically).
  3. Click ⚙️ on the Source node — tick tables to include, use Discover schema and Preview.
  4. Option A — simple: Add a SQL Transform node on the canvas and write your SELECT using {{ source }}.
  5. Option B — Normalisation + dbt Layer: Click ⚙️ on the Destination node:
    • Normalisation tab: Rename or exclude source columns before they land in the raw layer.
    • dbt Layer tab: Write a dbt SQL model on {{ source('raw', 'schema__tablename') }}.
  6. In the Config tab: set connection, final delivery schema, sync mode, write mode, and click Validate config.
  7. Click ▷ to run manually, check the history icon, then add a schedule in the Scheduling tab.

​
The parts of a pipeline

  • Pipeline shell: name plus source connection
  • Source configuration: the concrete table or resource to sync
  • Transform node (canvas): optional SQL SELECT using {{ source }} — runs before normalisation
  • Destination panel — 5 tabs:
    • Config: connection, final delivery schema, sync mode, replication key, write mode, validate
    • Normalisation: column-level Rename and Exclude rules; lands in raw.schema__tablename
    • dbt Layer: dbt SQL model on {{ source('raw', 'schema__tablename') }}; uses renamed column names
    • Preview: inspect the target table before running
    • Scheduling: recurring schedule configuration
  • Run history: the operational record of every execution
  • Sync state: the stored cursor checkpoint for incremental sync pipelines

​
3-stage Normalisation + dbt pipeline

For pipelines that combine Normalisation and the dbt Layer (any supported source and SQL destination), the flow is:
Source (public.tablename)
    ↓
Normalisation   ← Rename/Exclude columns
    ↓
Raw layer  (raw.public__tablename)
    ↓
dbt Layer       ← {{ source('raw', 'public__tablename') }}
    ↓
Destination  (analytics.your_model)
See Normalisation and dbt Layer for the full reference. For a Postgres-to-Postgres walkthrough, see the example guide.

​
What is true in the live builder today

  • Stream selection happens in the Source panel (⚙️ on Source node).
  • The destination panel has 5 tabs: Config, Normalisation, dbt Layer, Preview, Scheduling.
  • SQL Transform node uses {{ source }}; dbt Layer uses {{ source('raw', 'schema__tablename') }}.
  • Upsert is the available write mode. Append and Replace are coming soon.

​
Typical production patterns

  • one PostgreSQL table feeding one PostgreSQL reporting table
  • one Shopify or Stripe resource feeding one SQL destination table
  • one source stream branching to PostgreSQL for analytics and MySQL for internal operations
  • a PostgreSQL source using full sync for first validation, then incremental sync (beta) for volume efficiency
